Organic fertilizer dryer for pig farms

Product Specification : Φ800×7m-Φ3200×9m
Production Capacity : 1.0-1.5t/h-18-20t/h
Application Fields : It is suitable for pig farms and developed areas

Organic fertilizer dryer for chicken Manure

【Capacity】: 2-20t/h
【Power】: 9.5-37Kw
【Heat source】: Coal, oil, natural gas, timber

Organic fertilizer dryer is suitable for drying poultry manure like chicken manure, duck manure, pig manure, goose dropping, bird dropping, bat guano, ostrich drung and etc.

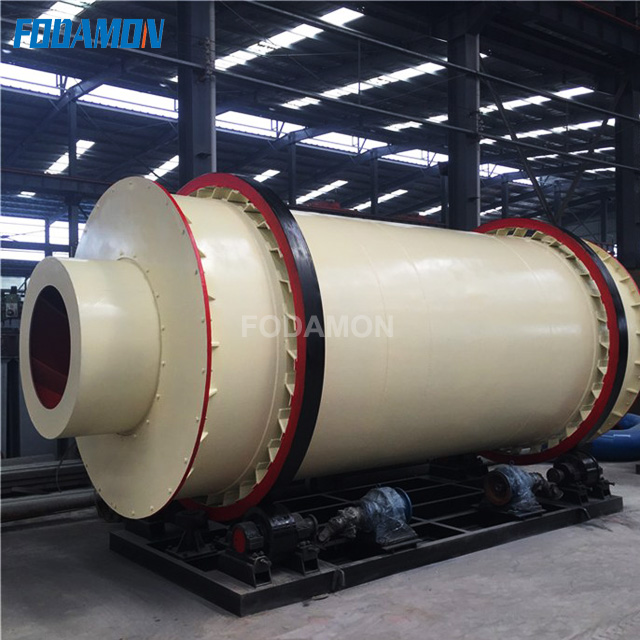

Organic fertilizer dryer, also known as paddle agitated rotary drum dryer, rake roller dryer, rotary rake drum dryer, and rotary paddle drum dryer. The machine has kept the ordinary drum advantages of the dryer, it is custom-designed suit to the disadvantage of the moisture is more than 50% weak stick, sticking material drying, and the drum center “black hole” phenomenon lead to the unit area evaporation capacity is inefficiency and high fuel consumption, etc. Increasing the high-speed rotation of the blade, strengthen the material grinding and decentralized function, and fill the drum center “black hole”.

This kind of rotary dryer is designed for high moisture material, such as more than 65% moisture. The same as Chicken manure, cow manure or pig manure. This dryer is different from other normal dryer, there is a inner mixing shaft to mix plup to better drying. And this type dryer is not very long, it is shorter than normal dryer. This can save your area, and the Drying efficiency is very high. The plup will be in dryer 30-50 mins more or less. You can adjust the speed. As normal, the drying working time is 24hours is better, our smallest model the output capacity is 0.5 t/h, the largest one is 20 t/h. And the outlet moisture is less than 15%.

Working principle of organic fertilizer dryer

The raw material plate is arranged conveniently to allow adjustable angle positions.
The material to be dried is inserted to the rotary cylinder through the raw material plate.
Hot air flows within the cylinder causing the separation of water from the material by
converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry Chicken manure dryer consists of heat supply device, loading device, feeding device, rotary dryer, crushing device, discharging device, fan, unloading device and power cabinet. Inside the dryer, the orderly arranged lifting blades scatter the wet materials around and make them fully contacted with the co-current hot air, which speed up this drying process.Under the force of oblique blades and hot-air flow,materials inside the dryer move from the feeding end to the star type discharging end,and are discharged as final product.

Organic fertilizer dryer composition

The manure dryer include shell, lifting blade, mixing shaft, Frequency conversion motor, reducer, gear ring, roller ring and Overall support. So it is the whole plant to drying manure. It is suitable for High moisture material.

Coal slime is the mineral coal with the lowest degree of coalification. A brown-black, dull low-rank coal between peat and bituminous coal. Because it is rich in volatiles, it burns easily and emits smoke. The traces of the original wood can be clearly seen on the section. Contains humic acid soluble in lye. The carbon content is 60% to 77%, the density is about 1.1-1.2, and the volatile content is greater than 40%. No glue layer thickness. The calorific value is about 23.0-27.2 MJ/kg (5500-6500 kcal/kg). Mostly brown or brown-black, with a relative density of 1.2 to 1.45.

Features of coal slime dryer

The coal slime dryer is designed for the characteristics that the initial moisture of blue carbon is higher than that of other materials, the specific gravity is smaller than that of other materials, and the fluidity changes greatly during the drying process. It has compact structure and less floor space, which is half of the floor space of single-cylinder drying with the same output. It has reliable operation, low energy consumption, high thermal efficiency, good material drying effect, easy to realize automatic control, and few operators. .

Working principle of coal slime dryer

Coal slime, fly ash, blue charcoal and other materials are sent to the feeder by the belt conveyor, and then the feeder transports the fly ash to the drying drum. , evenly dispersed and fully contacted with hot air to achieve the drying purpose of heat transfer and mass transfer. The dried fly ash is discharged through the unloader at the end of the drum, and the dry product is output by the belt discharge machine to complete the drying process.

Coal slime dryer process

The coal slime dryer uses a low-temperature four-stage drying process to evaporate the water content of the coal slime to less than 13% of the water content under the condition that the quality of the dried coal slime remains unchanged:

1. The first-level drying zone removes most of the water at a high temperature of 400°C under high humidity to ensure that the chemical composition of the coal slime does not change and is not easy to burn;
2. The room temperature of the secondary drying area is 300 ℃, and the high-yield water removal is carried out through the medium-temperature strong induced draft to ensure that the coal slime is not coked;
3. The indoor temperature of the third-stage drying area is 120°C-210°C, and the crushing device in the drum is used to repeatedly impact and break up the materials, and then dry them downstream;
4. The fourth-stage drying area is a high-exhaust area, with a room temperature of 60°C-80°C, and the water is removed by the low-temperature hot air flow with negative pressure in the induced air system.

The large chain ring cleaning chain is welded in the hopper of the coal slime dryer, which strengthens the cleaning effect and heat conduction effect of the chain on the dispersed material, and can effectively prevent the material from sticking inside and outside the lifting plate and on the inner wall of the drum.

The Desulfurized gypsum dryer is widely used for drying the Ore, Gypsum, Vinasse, chalk slags, coal powder, slags, Kaolin clay and other materials in the building materials, metallurgy, chemical industry, cement industry. you can use coal, gas, electricity, oil and wind power to heat the dryer machine.

Desulfurized gypsum dryer is specially used to fry semi-aqueous model gypsum powder and building gypsum powder, and the high-quality dry gypsum after drying can fully meet the actual industrial production needs. High-strength gypsum has strict requirements for raw materials, and the quality of drying is extremely high. Therefore, high-quality gypsum needs further deep processing to become high-strength gypsum.

The composition of desulfurization gypsum dryer

The desulfurized gypsum dryer is mainly composed of a heat source, a dispersing device, a belt feeder, a feeder, a rotary drum, a belt discharger, an induced draft fan, a discharger and a power distribution cabinet.

working principle of desulfurized gypsum dryer

The desulfurized gypsum from the feed screw directly into the breaking drum dryer, the plate is on the inner wall of the roller against taking the fall. Break bulk material with a negative pressure of the high temperature medium full contact, complete heat transfer process. Since the inclination and the action of the draft fan, the material from the feed end to the discharge end to move slowly, and then in the discharging end airflow extraction, via the conveying pipe after further drying into the dust, the airlock discharge.

Fodamon can provide a rotary drum dryer for just about any industrial drying application. . We have been installing dryers for many years and have the knowledge and experience required to provide a cost effective drying solution that not only works but works well.

Among the large number of by-products in the brewery, the wet brewer’s grains are the largest, but the wet brewer’s grains are easy to deteriorate, so it is easy to pollute the environment during transportation and storage. In recent years, many breweries have begun to deep-process beer by-products. It can reduce environmental pollution and increase economic benefits. The brewer’s grain dryer can quickly dehydrate and dry the wet brewer’s grains with a moisture content of about 85% to dry products with a moisture content of about 10%. A number of domestic beer companies and feed processing companies have been put into use, and have created considerable economic benefits.

Structure and process of distiller’s grains dryer

The brewer’s grains dryer is mainly composed of a heat supply source, a feeder, a feeder, a rotary drum, a discharge machine, an induced draft fan, a discharger and a power distribution cabinet; after the dehydrated wet brewer’s grains enter the dryer, Under the turning of the evenly distributed copying plate in the drum, it is evenly dispersed in the dryer and fully contacted with the hot air, which accelerates the heat and mass transfer of drying. During the drying process, under the action of the inclined copy board and the heat medium, the beer grains are discharged to the star-shaped discharge valve of the other section of the dryer to discharge the dried products.

The performance characteristics of the distiller’s grains dryer

1. The uniformity of product drying is good.
2. The structure is excellent, simple, the material runs smoothly through the resistance of the cylinder, and the operation is convenient.
3. Fewer failures, low maintenance costs, and low power consumption.
4. High degree of drying mechanization, large production capacity, and continuous operation.

Pomace (apple pomace, orange pomace, grape pomace, etc.) is a kind of inherent moisture, which is not easy to be dried. It is not dried according to the physical properties of the pomace. Wetness and dryness are uneven, and countercurrent drying is adopted, which can be reduced to less than 12% at one time, so that the baked material has a good color and no paste and nutrition is not lost.

Our company is a professional manufacturer of dryers. The pomace dryers produced by our factory are mainly used for apple pomace, orange pomace, grape pomace, peach pomace and other fruit pomace.

Composition of pomace dryer

The pomace dryer is mainly composed of a rotating cylinder, an induced draft device, a high-speed dispersing device, a lifting plate, a self-cleaning device, a transmission device, a conveying device, a hot air device, a reducer, a supporting device and a sealing device.

The complete set of dryer has the advantages of reasonable design, excellent production, stable performance, advanced technology, high output, low energy consumption, small footprint and high degree of mechanization.

Working principle of Pomace dryer

The pomace (apple pomace, orange pomace, grape pomace) dryer is directly sent to the drum crushing dryer by the feeding screw, and is repeatedly picked up and scattered by the copy board on the inner wall of the drum. The negative pressure high temperature medium is fully contacted to complete the heat and mass transfer process. Due to the inclination angle of the drum and the effect of the diverting air, the material moves slowly from the feed end, and is discharged from the discharge screw after drying, and the exhaust gas is discharged into the atmosphere after being removed by the dust collector.

Advantages and characteristics of pomace dryer

(1) The pomace (apple pomace, orange pomace, grape pomace) dryer has advanced technology and adopts high temperature rapid drying process, which has large heat transfer coefficient, high thermal efficiency and high drying strength.
(2) The pomace dryer adopts the technology of combining high-speed stirring drying and air drying, which can fully disperse the viscous material, greatly improve the contact area between the material and the heat medium, and is conducive to the drying process.
(3) The pomace dryer adopts a special scraping device to avoid the phenomenon of material sticking to the wall.
(4) The pomace dryer has a wide range of applications, simple operation, small maintenance and stable product quality.
(5) The pomace dryer is specially designed for drying slag materials. It has variable angle of rotating blade and adjustable speed of rotating shaft.
(6) The upper part of the pomace dryer is equipped with a wet material reflux layer, and the airflow dryer is equipped with a special agitator.

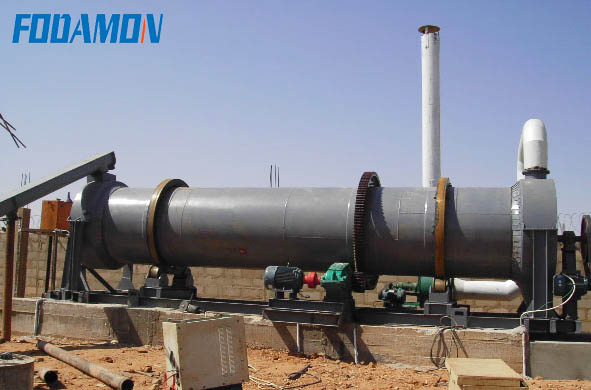

The demand for cow dung dryer is huge, and it has its foothold in many fields. Cow dung dryer is suitable for large, medium and small chicken farms and areas with relatively developed breeding industry. According to the requirements of drying products, it can be used different heat sources. The cow dung dried by the cow manure dryer (chicken manure dryer, duck manure dryer, horse manure dryer) can be used not only as a medium for growing edible mushroom Agaricus bisporus, but also as a breeding medium for turtles, fish, Feed for snails, chickens, ducks, etc. for sale. It has a good effect on opening up feed resources, reducing feeding costs and reducing environmental pollution.

The cow dung drying unit adopts the air drying method with high thermal efficiency. On the premise of not destroying the quality of the finished product, it can complete the deodorization and insecticidal sterilization of the material at one time. Dry until the final moisture content is below 14%.

The main structure of cow dung dryer:

Feeder, hot blast stove, dryer, dust collector, motor, fan, electrical control cabinet, etc.

Cow dung dryer performance characteristics:

1. Production process: This machine dries cow dung with a moisture content of 80% through high temperature drying, disinfection and sterilization, decomposition and other processes to obtain pure cow dung organic fertilizer with a moisture content of less than 13%.
2. Dried finished product: The organic fertilizer has a variety of nutrients necessary for crops. The scientific research department has found that the nitrogen content of this fertilizer is 2.6%, the phosphorus content is 3.5%, the potassium content is 2.5%, the crude protein is 16-25%, and the organic matter is 45%. It is the fertilizer of choice for pollution-free green food planting, and can also be used to feed fish, cattle, pigs, etc.
3. The drum drying has a high degree of mechanization, a large production capacity, and can be operated continuously.
4. The structure is excellent, simple, the material runs smoothly through the resistance of the cylinder, and the operation is convenient.
5. Fewer failures, low maintenance costs, and low power consumption.
6. Wide application range and good drying uniformity.
7. It can also achieve the purpose of sterilization and deodorization while drying.

Industrial dryers are very different from the dryers that most people know. Industrial dryers are mainly used in mineral processing, construction, metallurgy, chemical and other industries.

The industrial dryer machine has a wide range of applications and can be used to dry more than 100 kinds of materials such as coal slime, limestone, river sand, and clay. It has the advantages of strong heat transfer and high drying efficiency. Industrial dryers are used in sand and gravel yard, mining, coal mining, concrete mixing station, dry mortar, power plant desulfurization, refractory materials, building materials and other industries.

Industrial Dryer Performance Advantages

1. Fast heat transfer speed and wide drying area.
2. Reasonable parameter design and low energy consumption.
3. Energy saving, high efficiency and high application value.

Industrial Dryer Installation

When installing industrial dryer equipment, it is necessary to check the place to be installed and the spare equipment to be installed, so that there will be no other problems during installation, and future use will not be caused by mistakes in initial installation. Inconvenient maintenance and so on. The installation is mainly to check the quality of the foundation concrete pouring and the deviation of the size and position.

For the basic size and position deviation, the following requirements should be met: the external dimension and the basic coordinate position, the vertical and horizontal axis error is less than 20mm. The elevation error of different planes is less than 20mm, only negative and positive are allowed; the overall length of the slope error is less than 20mm, and the discharge end is allowed Correctness is not allowed; the unevenness of the upper plane is less than 5mm/m, and the overall length is less than 10mm. Check the equipment and check the packing list of the equipment, check the parts, components, standard parts, random documents, etc., and check whether there are any wrong or missing parts, Deformation damage, etc., and record them for purchase or preparation prior to installation.

Pre-test and pre-assemble components and key fittings to avoid rework during installation and ensure installation progress and installation quality.

Kaolin clay dryer is a new type of drying equipment developed on the basis of tumble dryer. It has the effect of environmental protection and energy saving. It is mainly used for drying some granular materials, and can also be used for mixing some materials. Dry viscous, paste-like materials or materials with high water content.

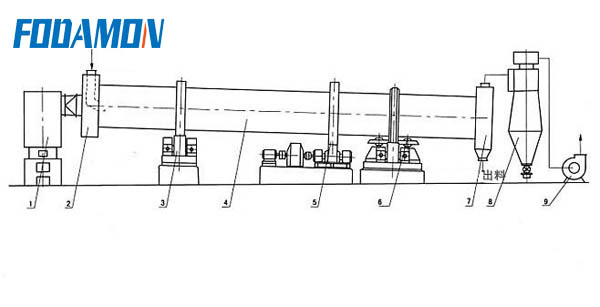

Kaolin Clay Dryer Structure

The structure of the kaolin clay dryer is the same as that of the traditional drum dryer, but the shape and technical parameters of the internal parts have been improved. The kaolin clay dryer is composed of a feeding port, a discharging port, a cylinder, a roller, a gear, etc. The feeding port has a dispersing device, and the cylinder has a lifting plate. (Auxiliary equipment matching with the dryer: combustion chamber, feeding and discharging equipment, dust collection equipment, etc. are not within the scope of this machine).

Features of Kaolin Clay Dryer

1. The kaolin dryer has strong overload resistance, large processing capacity, low fuel consumption and low drying cost;
2. The kaolin dryer adopts the downstream drying method, the hot air and the wet material enter the dryer from the same side, and the high temperature air can be used to obtain high evaporation intensity, the outlet temperature of the dryer is low, and the thermal efficiency is high;
3. The kaolin dryer can change the operating parameters according to the properties of different materials, so that the materials can form a stable full-break fabric curtain in the dryer cylinder, and the quality and heat exchange;
4. The new feeding and discharging device eliminates the phenomenon of feeding blockage, discontinuity, unevenness and returning of the drum dryer, and reduces the load of the dust removal system;
5. The kaolin dryer achieves “zero horizontal thrust”, which greatly reduces the wear of the retaining wheel, and the cylinder runs smoothly and reliably;
6. The kaolin dryer adopts “aligning type supporting roller device”, which makes the cooperation between the supporting roller and the rolling ring in linear contact, thus greatly reducing the wear and power loss;
7. The kaolin clay dryer can control the moisture of the product according to user requirements.

Fodamon machinery specializes in the design and production of water slag/slag/mineral powder dryers, free design of production line processes, and turnkey projects. If you have any needs, you can call directly to provide you with more comprehensive and rich information and guidance.

Slag drying equipment is mainly used for slag, limestone, clay, river sand, quartz sand, water slag and other materials with high moisture and specific gravity. The slag drying production line is mainly composed of rotating cylinder, induced draft equipment, high-speed breaking equipment, lifting plate, self-cleaning device, transmission device, conveying equipment, hot air equipment, reducer, support device and sealing device. The complete set of drying equipment has reasonable design, excellent production, stable performance, high output, low energy consumption, small footprint and high degree of mechanization.

The slag dryer produced by our company can also be used for material drying in cement, mining, building materials, chemical, grain, compound fertilizer production and other industries.
