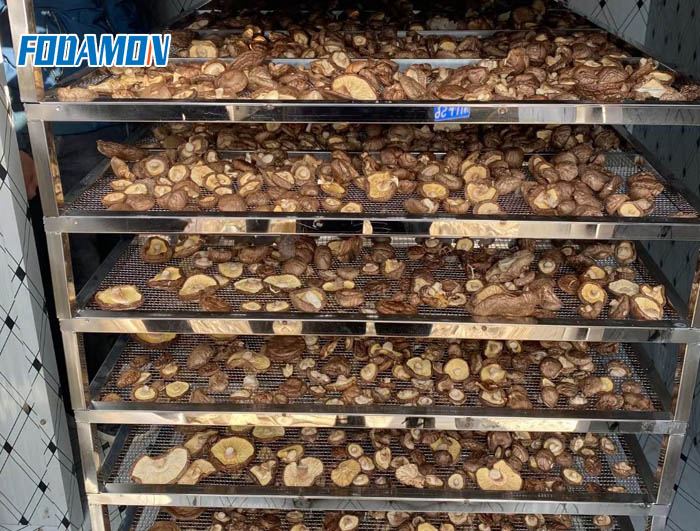

Mesh Belt Dryer

Mesh Belt Dryer Introduction:

The Mesh Belt Dryer for Sale is one kind of batch, tunnel type continuous production drying equipment. It is mainly used for better breathability slice, strip and briquettes and bulk material, like coal bar, coal tablet, etc. drying process. Heating source is power, steam and hot air, etc. The Mesh Belt Dryer for Sale is conceptually very simple. Product is carried through the dryer on conveyors and hot air is forced through the bed of product. Mesh Belt Dryer for Sale is often described as simply a conveyor in a box with hot air. The reality, however, is that the belt dryer is one of the most versatile dryers available. Few drying technologies can match the belt dryer’s ability to handle such a wide range of products.

Mesh Belt Dryer Working Principle:

Mesh Belt Dryer for Sale feeding part has feeding device, which laid material evenly on the mesh belt through distributor. When first layer move to driving chain wheel, material fall down to second layer by self-weight.
Use blower delivery hot air to bottom from upper both wall side inter-layers, make hot air flows up from bottom, so that wet material fully absorb heating, and reach to perfect drying effect.
The wet air from dried material is transported by weep hole on the upper middle part of dryer. Not dried briquettes, the strength is a little bad at the beginning. When fall down from layer to layer, the impacting and rubbing of each briquette will bring powder.
Traditional drying machine get manual clean, but it takes big labor intensity, and need open door to clean, which cause drying machine inside temperature lose.
Now, our factory adds a scraper slag removal machine on the dryer bottom can get rid of powder quickly and conveniently.

Call to Action, We will answer your email in 24 hours!

Get Price！

Mesh Belt Dryer Advantages:

Materials are uniformly put on the mesh-belt by the feeder.
The drier is composed of several units.
For each unit, the hot air is circulated separately.
Some exhausted gas is discharged with a special moisture elimination blower.
The waste gas is controlled through an adjustment valve.
The hot air passes through the mesh-belt covered with the material from the top to the bottom or from the bottom to the top and this will complete the heat and mass transfer process.
This process will bring the material water away.
The mesh-belt moves slowly, Running speed can be freely adjusted according to the material temperature. The final products after the drying will fall into the material collector continuously.
The top and low circulation units can be freely equipped according to the users’ demand.The unit number can be selected according to the demand.

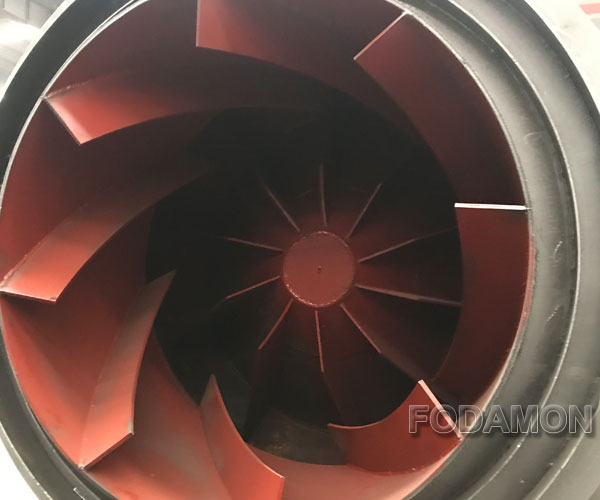

Three Cylinder Dryer

The three cylinder dryer is mainly used for drying granular materials in a certain humidity and particle size range. The three return dryer is a highly efficient and energy-saving product based on a single cylinder rotary dryer. It has achieved good results through the application of many enterprises and various industries. The rotary three reflux dryer improves the internal structure of the single cylinder single cylinder dryer, increases the drying time of the wet material before entering the machine and prolongs the drying time of the wet material in the machine, plus the sealing, moisturizing and reasonable matching measures, so that the drying machine can improve the production capacity of the single barrel and increase the evaporation strength per unit volume compared with the original single cylinder dryer. Up to 120-180kg/m3, the standard coal consumption is only 6-8kg/t. Its technology is advanced, operation parameters are reasonable, operation is simple and feasible. After drying, the moisture content of the material can reach below 1 – 0.5%.

Know more about our Three cylinder dryer

Less investment, equipment investment is 1/6 of foreign imports.
The final moisture content is low, and the final moisture content of the material is below 0.5%. It is the preferred product of dry mixed mortar and slag powder production line.
The thermal efficiency is high, and the thermal efficiency of the self insulation of the cylinder is as high as 70% (the thermal efficiency of the traditional single dryer is only 35%), and the thermal efficiency is increased by 35%.
Fuel is widely used, and fuel can adapt to coal, oil and gas. It can bake lumps, granules and powders less than 20 mm.
Investment in civil construction and electricity consumption are low. Compared with the single cylinder dryer, it reduces the occupation area by 50%, the civil construction investment reduces by 50%, and the electricity consumption reduces by 60%.
According to user requirements, we can easily control the final water requirement.
Low outgassing temperature and long use of dust removal equipment.
There is no need for the gear drive and the wheel drive.
The discharging temperature is less than 60%, and the packing can be produced continuously.

Call to Action, We will answer your email in 24 hours!

Get Price！

In simple terms, the three cylinder dryer has a compact structure, simple structure, reasonable layout, higher heat exchange rate of material and heat, good drying effect of material, less base input, only 1/2 of the same output single barrel dryer, reducing the one-time input, reliable operation, low energy consumption and high thermal efficiency; at the same time, the capacity is high. It is easy to realize automatic control, reduce operators and save labor resources.

Working principle

The material is entered into the inner layer of the rotary drum by the feeding device. The material is continuously dried and dried under the inner layer. The material moves to the middle layer on the other end of the inner layer. The material is dried by countercurrent, and the material is repeatedly back up in the middle layer, and it goes into the two step backward way. In the middle layer, the material not only absorbs the heat of the inner roller fully, but also absorbs the heat of the middle layer drum, while prolonging the drying time, the material reaches the best drying state. The material goes to the other end of the middle layer and falls into the outer layer. The material is moving in a rectangular multi loop way in the outer roller. The material that reaches the drying effect is rapidly moving out of the roller under the effect of hot air. The wet material without drying effect can not go fast because of its self weight, and the material is fully dried in the rectangular plate. Finish the drying purpose.

Sand Stone Dryer

Outer cylinder length: 6-8.5m
Production capacity: 5-100t/h
Application range: coal industry, ore beneficiation industry, steel making industry and sand making industry;
Application: river sand, artificial sand, silica sand, yellow sand, mineral sand, grain slag, coal cinder and etc.

Get price

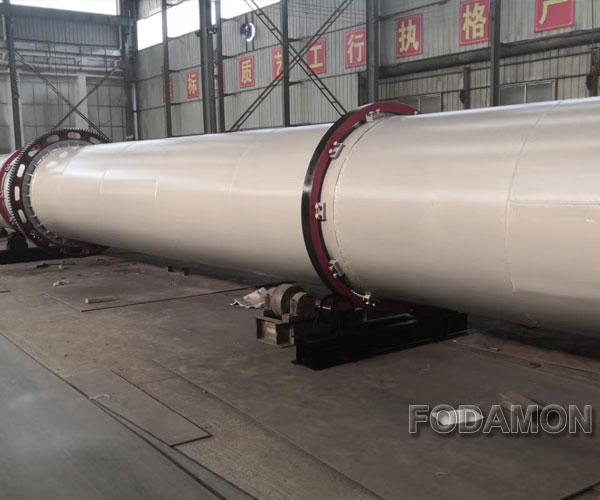

Rotary Drum Dryer

Rotary Drum dryer is alsocalled rotary drying machine, which is especially widely used as mining equipment. Rotary Drum dryer is suitable for drying metallic and nonmetallic materials such as clay, coal slurry, sludge, gypsum, etc.

Application Range：widely applie to construction material,chemical industry, casting indusry, mining and metallurgy industries.

Applicable Materials：silica sand, ore slag, clay, iron powder, ore powder, cement, gypsum, coal ash and etc.

Fodamon drying machine adopts the new type of feed device, has the function of guiding, flow, raising material etc, can make the material in the dryer section size to full uniform, make the curtain of material into thin, all state ,make the material full contact with hot air flow to achieve the full utilization of the heat energy . Reasonable selection parameters of drying machine, its coal consumption and electricity consumption is less 10-15% than generally drier at least , yield rises over 10-15%, has been widely used in cement and mineral processing enterprises.

Features:

Widely used for drying material with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. It can be used for drying many kinds of materials such as limestone slag, coal powder, clay stone etc.
It has advantage of reasonable structure, high efficiency, low energy consumption.
It mainly consists of rotary body, raw material feeding plate, lifting blade, driving and supporting device, sealing ring and etc.Fodamon drying machine adopts the new type of feed .

Advantages

There is a vertical preheater added at the kiln tail, which can transfer flue gas with about 900 degree directly to limestone.
The length reduction can not only reduce heat loss, but also reduce covering area of equipment.
The whole gypsum production line holds advantages of high level automation and centralized control.
External heating system can apply coal, wood or electricity as fuel.

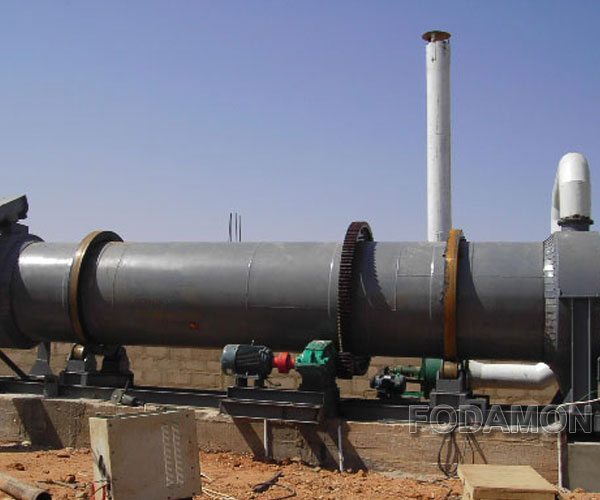

Forage Feed Dryer

Fodamon forestry wastes dryer is specially designed to deal with various biomass wastes, like sawdust, leaves, log, branch, wood chips, wood shavings and other wooden wastes. Fodamon triple-pass light materials drum dryer is newly developed and designed by Fodamon technical part to efficiently dry these light materials. Fodamon forestry wastes triple-pass dryer is characterized by following features:

Raw material: Biomass Material,Sawdust, grazing, leaves, sugarcane biogases, and animals’ wastes and so on.
Capacity: 2.5-36t/h
Power: 4-75Kw
Delivery period: 15-30days

light material rotary drum dryer

Forestry waste dryer machine has wind adjusting equipment between stove and dryer, which can adjust wind blowing speed to dryer according to raw materials humidity and temperature when hot air going out from stove.
Forestry waste dryer machine is mainly for drying the small diameter raw material less than 30mm, The moisture content should be less than 65% for common dryers. You can dry the fresh grass directly, no need to cut into powder.
Forestry waste dryer machine are decided by the raw materials humidity, last humidity after dryer requirement, capacity per hour, and so on.
Forestry waste dryer machine has two types outlet materials way, one is outlet from rotary drum bottom, it is fit for large weight ratio materials, the other is to outlet from cyclone bottom, which fits for light ratio materials . So please tell us what kind of raw materials and dimension, then we will help you choose best dryer model.

Palm Silk Dryer

Due to its anti-moth, anti-bacteria, easy storage and high resilience, coconut shred is very good raw material for traditional mattress and cushions which are highly accepted by market. But, when coconut shred is just screened from coconut shell, its moisture is around 30% to 45%. Traditional method is to naturally expose the coconut shred under sun for 3 to 5 days, which costs both labor force and time. Long-time sun exposure will make coconut shred loose its original golden color, cause fungi easily and mix impurities, which will affect sales. Zhengzhou Fodamon coconut palm drying production line can directly match with coconut shred opener, coconut palm dryer, coconut coir separator, de-salting and dewatering. It only costs about 40 minutes to finish whole process. It adopts assembly line working mode which can save labor force and time. While consuming less energy and causing less pollution, Fodamon coconut shred drying line can also guarantee good product quality.

Capacity: 0.3-5tph
Power: 20-75Kw
Heat source: Coal, oil, natural gas, timber
Applicable material: Coconut waste, Cassava Chips, Cassava Dreg, Wood chip, Biomass Material, sawdust, coconut silk, palm silk and other similar materials.

Coconut palm silk thread dryer

Fodamon biological fiber drying system adopts new drying technology. Specially designed for long fiber biomass materials, it can meet customers’ drying and reutilization demands for coconut shred, palm fiber and other materials which cannot be dealt with by common drying equipment. Fodamon system is characterized by safety, intelligence, energy conservation, pollution free, high efficiency and high yield. Besides this kind of drying technology, Fodamon can also provide whole set of solution including opening, crushing, carbonizing, activating, pelleting and baling to meet different customers’ demands.
Fodamon drying system can reduce coconut fiber’s moisture from 30%-45% to below 18% rapidly. Besides coal, diesel, gas, electricity and other common fuel, Fodamon system can also use wood, straw and fruit shell and other waste materials as heat source, which realizes reutilization of wastes and reduces running cost. Final dried products hold bright color, high strength and good flexibility.

Straw Rotary Dryer

Straw (pasture) dryer is applied for drying barley straw, oat straw, wheat straw, rye straw, straw, sorghum straw, corn straw, potato vines, bean stalks ( including materials like soybean straw, broad bean straw, pea straw, cowpea straw, lupine straw, peanut vine, etc.) According to the characteristic, production capacity, applying requirement, cost control, operating convenience of each biomass materials, our company optimizes the drying technology.

Capacity: 1100-8000kg/h
Floor area: 514~1020
Heat source: Coal, oil, natural gas, timber
Applicable material: 1.9-76.0t/ rice husk, wood shavings, wood chips, straw, sawdust

Recommended products: three-layer rotary drum dryer. This equipment is of huge production, high efficiency and energy saving, small floor space. Compared with common dryer machines, it saves energy by 30%-50%, thus saving energy and drying cost to the maximum.

Coconut Waste Rotary Dryer

A Coconut Waste Rotary Dryer is a type of industrial dryer used to remove moisture from coconut waste such as coconut shells, coconut husks, and coconut coir. The dryer works by heating the coconut waste in a rotating drum or cylinder, which is equipped with internal flights or lifters that agitate and move the material as it dries.

The process of drying coconut waste is important because it reduces the weight and volume of the waste material, making it easier to handle and transport. It also helps to extend the shelf life of the material, which can be important in industries that use coconut waste as a raw material.

Some of the key features of a Coconut Waste Rotary Dryer may include:

A rotating drum or cylinder with internal flights or lifters that help to agitate and move the material as it dries.
A heating system, which may use a variety of fuels such as natural gas, propane, or biomass, to generate heat and dry the material.
A discharge system, which allows the dried coconut waste to be removed from the dryer and collected for further processing or storage.

Coconut waste rotary dryers can be used in a variety of industries, including agriculture, food processing, and biomass energy production. They can also be used to dry other types of biomass waste, such as sawdust, wood chips, and corn stalks.

It’s worth noting that proper safety precautions must be taken when operating a Coconut Waste Rotary Dryer, as the high temperatures involved in the drying process can pose a fire hazard. Additionally, care must be taken to ensure that the material being dried is not contaminated with any hazardous substances that could pose a health risk to workers or consumers.

Coconut waste is a common agricultural byproduct in many countries, particularly those that have a large coconut industry. Some of the countries that produce the most coconut waste in the world include:

Indonesia: Indonesia is the world’s largest producer of coconuts, and as a result, it generates a significant amount of coconut waste. The waste is commonly used as a source of fuel for cooking and heating.
Philippines: The Philippines is another major producer of coconuts, and it also generates a large amount of coconut waste. The waste is used in a variety of ways, including as a source of fuel and as a raw material for the production of various products.
India: India is a major producer of coconuts, particularly in the southern states. The country generates a significant amount of coconut waste, which is used in a variety of applications, including as a source of fuel and as a raw material for the production of products such as coir mats and ropes.
Sri Lanka: Sri Lanka is another country that has a significant coconut industry and generates a large amount of coconut waste. The waste is used in a variety of applications, including as a source of fuel and as a raw material for the production of products such as activated carbon.
Thailand: Thailand is a major producer of coconuts and generates a significant amount of coconut waste. The waste is used in a variety of applications, including as a source of fuel and as a raw material for the production of products such as coconut oil.

Other countries that produce significant amounts of coconut waste include Malaysia, Vietnam, Papua New Guinea, and Brazil.

Rice Husk Dryer

Rice husk rotary drum dryer is your best choice to dry biomass materials of high moisture content and produce high quality biomass fuels. It can be used for drying a wide range of biomass materials such as alfalfa, straw, sawdust, marigold, wood shavings, manioc waste, bagasse, colza cake and tree leaves.

Capacity: 300-1200kg/h
Power: 4-16Kw
Heat source: Coal, oil, natural gas, timber
Applicable material: 1.9-76.0t/ rice husk, wood shavings, wood chips, straw, sawdust.

Fodamon rice husk rotary drum dryer is featured by low energy consumption and high drying efficiency.

Fodder Drying Machine

The fodder drying equipment is a professional dryer for animal forage, animal feed, fodder, wood , wood flour , sawdust , charcoal , forage , straw and other agricultural wastes for it low temperature and large capacity.

Rotation speed: 1.5-8rpm
Capacity: 0.5-40tph
Delivery period: 15-35 days
Applicable material: spent grain, vinasse, distiller, bean pulp, bean residues, paper pulps and other high-moisture sticky materials; cassva residues, cassva dregs, bean pulp, bean residues; animal feed;

Working Principle and structure of the fodder drying machine:

Materials are sent to hopper of fodder drying machine by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely.

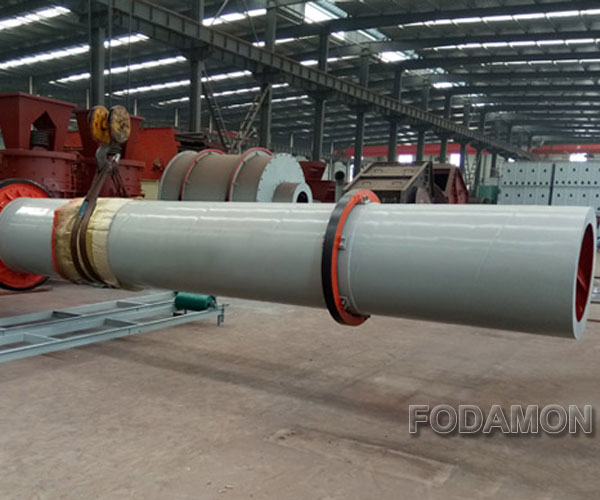

Sawdust Dryer

Fodamon is a sawdust dryer manufacturer producing and selling sawdust dryer machine. The sawdust drying machine manufactured by our company has reasonable price, high quality and enjoys high reputation in machinery manufacturing industry.

Capacity: 2.6-36tph
Power: 7.5-75Kw
Heat source: Coal, oil, natural gas, timber
Applicable material: 1.9-76.0t/ rice husk, wood shavings, wood chips, straw, sawdust.

Fodamon sawdust dryer has many outstanding features such as high drying strength, short drying time, simple structure, small floor space, easy construction and maintenance, high handling capacity and high thermal efficiency.
